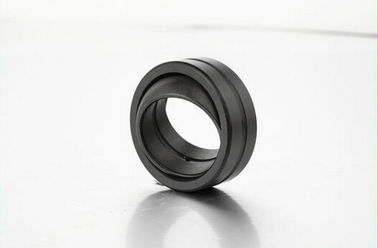

Automobile Spherical Plain Bearing Shock Absorber GE 12 E 12 X 22 X 10MM
SIZE: 12x22x10MM
WEIGHT:0.017KG
Material of bearings
BALL | RACE |
ALLOY STEEL | ALLOY STEEL, HEAT TREATED |
HEAT TREATED | SINGLE FRACTURE |
PHOSPHATE COATED | PHOSPHATE COATED |
Prouducts details
Bearing Description:
The Spherical Bearing is a heavy-duty self-aligning sliding bearing. Highly resistant to impact loads, this product is most fitted to the oscillating section under slow, heavy loads.
Bearing designs :
(1) GE ... E every single outer ring, no oil tank. Able to support radial load and smaller in
either direction axial load.
(2) GE ... EStype outer ring slit, a lubricating oil tank. Able to support radial load and smaller in either
direction axial load.
(3) GE ... ES2RS outer single slit, a lubricating oil tank, both sides with a ring. Able to support radial load and
smaller in either direction axial load.
(4) GEEW ... ES2RS outer single slit, a lubricating oil tank, both sides with a ring. Able to support radial load and
smaller in either direction axial load.
(5) GE ... ESN single slit the outer ring, a lubricant tank, the outer ring groove. Able to support radial
load and smaller in either direction axial load. But the axial load to bear by the stop ring, its ability
to reduce the axial load.
Spherical Plain Bearings are used in high load and severe misalignment conditions. They may also be used in applications requiring oscillation, tilting or similar conditions not involving high rotational speeds. Typical applications include mounting joints for hydraulic cylinders, vehicle steering linkages and other heavy duty articulating joints. These bearing are available in multiple configurations:
Application
Joint bearing is widely used in engineering hydraulic cylinder, forging machine tools,
engineering machinery, automation equipment, automobile shock absorber,
water conservancy machinery industries
Number | Dimensions mm | Loading ratings KN | Weight | ||||||||
d | D | B | C | dk | R1s | R2s | α° | C1 | Co | ≈kg | |
min | min | ≈ | |||||||||
GE6E | 6 | 14 | 6 | 4 | 10 | 0.3 | 0.3 | 13 | 3.4 | 17 | 0.004 |
GE8E | 8 | 16 | 8 | 5 | 13 | 0.3 | 0.3 | 15 | 5.5 | 27.5 | 0.007 |
GE10E | 10 | 19 | 9 | 6 | 16 | 0.3 | 0.3 | 12 | 8.15 | 40.5 | 0.011 |
GE12E | 12 | 22 | 10 | 7 | 28 | 0.3 | 0.3 | 11 | 10.8 | 54 | 0.016 |
GE15ES | 15 | 26 | 12 | 9 | 22 | 0.3 | 0.3 | 8 | 17 | 85 | 0.025 |
GE17ES | 17 | 30 | 14 | 10 | 25 | 0.3 | 0.3 | 10 | 21.2 | 106 | 0.041 |
GE20ES | 20 | 35 | 16 | 12 | 29 | 0.6 | 0.3 | 9 | 30 | 146 | 0.061 |
GE25ES | 25 | 42 | 20 | 16 | 35.5 | 0.6 | 0.6 | 7 | 48 | 240 | 0.11 |
GE30ES | 30 | 47 | 22 | 18 | 40.7 | 0.6 | 0.6 | 6 | 62 | 310 | 0.14 |
GE35ES | 35 | 55 | 25 | 20 | 47 | 0.6 | 1 | 6 | 80 | 400 | 0.22 |
GE40ES | 40 | 62 | 28 | 22 | 53 | 0.6 | 1 | 6 | 100 | 500 | 0.3 |
GE45ES | 45 | 68 | 32 | 25 | 60 | 0.6 | 1 | 7 | 127 | 640 | 0.4 |
GE50ES | 50 | 75 | 35 | 28 | 66 | 0.6 | 1 | 6 | 156 | 780 | 0.54 |
GE60ES | 60 | 90 | 44 | 36 | 80 | 1 | 1 | 6 | 245 | 1220 | 1 |
GE70ES | 70 | 105 | 49 | 40 | 92 | 1 | 1 | 6 | 315 | 1560 | 1.5 |
GE80ES | 80 | 120 | 55 | 45 | 105 | 1 | 1 | 6 | 400 | 2000 | 2.2 |
GE90ES | 90 | 130 | 60 | 50 | 115 | 1 | 1 | 5 | 490 | 2450 | 2.7 |
GE100ES | 100 | 150 | 70 | 55 | 130 | 1 | 1 | 7 | 610 | 3050 | 4.3 |
GE110ES | 110 | 160 | 70 | 55 | 140 | 1 | 1 | 6 | 655 | 3250 | 4.7 |
GE120ES | 120 | 180 | 85 | 70 | 160 | 1 | 1 | 6 | 950 | 4750 | 8 |
Wuxi MBY bearing technology co.,ltd produce all kinds of ball and roller bearings.
We also supply :
1. Double Row and single row Deep Groove Ball Bearings
2. Angular Contact Ball Bearings
3. Self-aligning Ball Bearings
4. Thrust Ball and roller Bearings
5. Cylindrical Roller Thrust Bearings
6. Taper Roller Bearings
7. Spherical Roller Bearings
8. Cylindrical Roller Thrust Bearings
9. Spherical Roller Thrust Bearings
10. Needle Roller Bearings
11. Ceramic Ball Bearings
Bearing Photos:
Package:
Plastic tube,industrial packing,single box,carton,wooden case,etc
Shipping
DHL/TNT/UPS/FEDE,etc
by sea or by air
Wuxi MBY BEARING TECHNOLOGY CO.,LTD produce all kinds of ball and roller bearings.
We also supply :
1.Double Row and single row Deep Groove Ball Bearings
2.Angular Contact Ball Bearings
3.Self-aligning Ball Bearings
4.Thrust Ball and roller Bearings
5.Cylindrical Roller Thrust Bearings
6.Taper Roller Bearings
7.Spherical Roller Bearings
8.Cylindrical Roller Thrust Bearings
9.Spherical Roller Thrust Bearings
10.Needle Roller Bearings
11.Ceramic Ball Bearings
ISO certificate:
Automation production line:
